Aluminium Filtration Cloth Cut Pieces For Aluminium Castings Filtration


Aluminium Filtration Fabric E-glass Fiberglass Mesh filter is specially developed and used for filtration, turbulence reduction and flow distribution improvement of non‐ferrous alloys especially the molten aluminum. The Aluminium Filtration cloth product is weaved from E-glass fiberglass yarn with resin coating. The filter fabric is Rigid and with brown color or black color (smokeless treated).

Application

Sand castings or permanent castings, Aluminium Filtration Fabric.

Advantage

Cost effectve and easy to use Aluminium Filtration cloth .

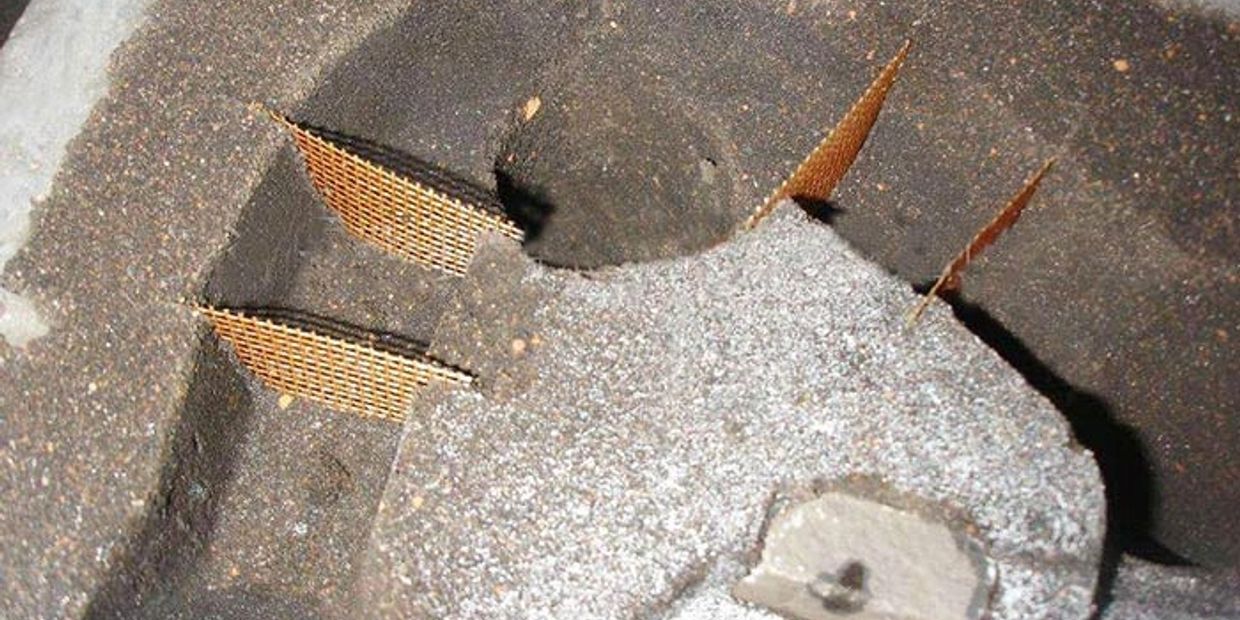

Fiberglass fabric mesh filter cut pieces FOR sand castings

Spceification

Aluminium Filtration Fabric cloth filters

Filter fabric yarn type: E-glass fiberglass

Coating: With phenolic resin coating

Working emperature: 700- 900℃

Weave type: Leno & plain

SiO2 content:  ≥58%

Width per roll: 0.93m/1.0m  ± 1cm

Length per roll: 100m/150m/200m

Hole size (Mesh opening): 0.8-3.0mm

Weight: 150-330g/m2  ± 10%

Thread per inch: Warp 5-20,Weft 5-20

Loss on ignition: ≤3%

Thickness: 0.35-0.6mm
