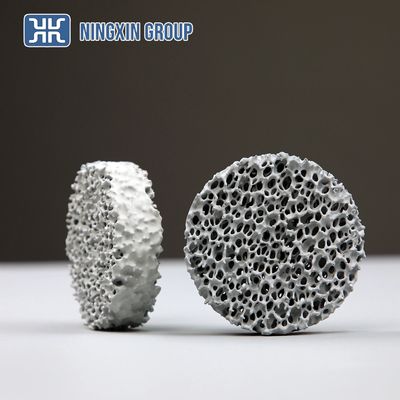

Silicon Carbide Ceramic Foam Filter
Sic ceramic foam filter for grey and ductile iron castings filtration
Sic (silicon carbide) ceramic foam filters of NINGXIN are developed and manufactured for the filtration of cast iron and non ferrous alloys. As the most advanced filter type with the higher filtration efficiency, It can effectively reduce inclusions and turbulence of molten metal, ensuring purified molten metal goes into the mold cavity with improved flow rates.
Using the unique formula and manufacturing process, NINGXIN sic ceramic foam filters have the excellent thermal shock, chemical and high temperature resistance up to 1500°C.
Application:
- Grey iron castings
- Ductile iron castings
- Malleable iron castings
- Non ferrous castings aluminum, copper and bronze alloys
Silicon Carbide Sic Ceramic Foam Filter
Sic ceramic foam filter advantages
NINGXIN Sic ceramic foam filter features
- High performance silicon carbide ceramic foam filter
- Precise sizes control on ceramic foam filters
- High strength with multi-impregnated slurry and free from loose debris
- Branded main raw materials to ensure stable quality
- Good porosity and free from block during pouring molten metal
- Mature sinter technology to ensure good thermal shock resistance
Various PPI is available based on request
Ceramic Foam Filter Specification
Silicon carbide ceramic foam filter
Name: Sic ceramic foam filter
Main material: Silicon Carbide
Max. applied temperature: ≤1500℃
Color: Gray black
Hole density (PPI):10/15/20/25/30 (PPI=pores per inch)
Porosity(%): 80-90
High temperature bending strength（Mpa）: ≥2.5
Bending strength（Mpa）: ≥1.5
Compressive Strength(MPa) : ≥1.0
Bulk Density(g/cm3): 0.4-0.5
Thermal shock resistance: 6 times/1100℃-room temp.
FLOW CAPACITY:
For Gray Iron: Max. filtration weight can be calculated based on Filter area(cm) x 4
For Ductile Iron: Max. filtration weight can be calculated based on Filter area(cm) x 2
DIMENSIONS:
Length(Diameter)*width*height=(35‐300)*(35‐300)*(11‐50)mm
With round, square and rectangle shape.
Size tolerance: ‐1.5~0mm(size under 100mm) ; ‐2~0mm(size above 100mm)
Pore size: 10/15/20/25/30PPI
Pore Tolerance: ± 2PPI
