20 years Manufacturer of Foundry Molten Liquid Metal Filtration Casting Filter
20 years Manufacturer of Foundry Molten Liquid Metal Filtration Casting Filter
Zirconia ceramic foam filters are determined for filtering of steel and steel alloys up to the
temperature of 1700 °C. Filters are recommended especially for high quality grades of alloys.
MODEL NAME: ZIR‐CFF
DESCRIPTION: Zirconia ceramic foam filter
APPLICATION: For the filtration of molten steel and alloy, large scale iron casting
ADVANTAGE:
PHYSICAL PROPERTY:
Main material: ZrO2
Working Temperature: ≤1700℃
Color: Yellow
Hole density: 10/20PPI(PPI=pores per inch)
Porosity(%): 80‐87
Compressive Strength(MPa) : ≥1.5 (Room temperature)
Bulk Density(g/cm3): 0.9‐1.3
Thermal shock resistance: ≥3times/1350℃‐Room temperature

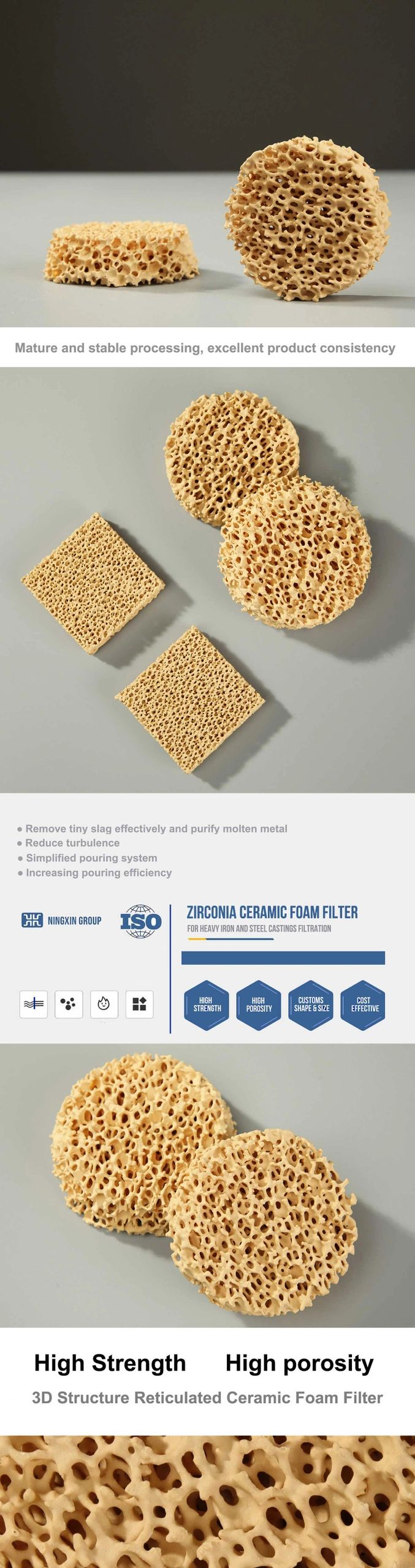

Zirconia Ceramic foam filter
zirconia ceramic foam filter Length(Diameter)*width*height=(35‐200)*(35‐200)*(11‐30)mm
Round, square and rectangle for zirconia ceramic foam filter
‐1.5~0mm for zirconia ceramic foam filter
10PPI/20PPI are common for zirconia ceramic foam filter
Pore Tolerance: ± 2PPI
Zirconia ceramic foam filter for Carbon Steel: 1.0‐2.7kg/cm2
Zirconia ceramic foam filter for Stainless Steel: 1.0‐4.0kg/cm2
